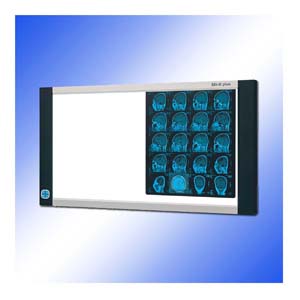

X-Ray Film System Type 1

Elegant interior attractive appearance with 25 mm thickness making efficient space saving.

TFT-LCD backlighted display without eye fatigue. Excellent illumination of over 7000 lux.

Permanent CCFL slim lamps with long life time of 20,000 hr, it's provent more accurate film reading via uniform light.

Low power concumption of 2.0 to 5 W. it is switch ype with high frequency for power supply.

It comes with easy button switch type for each viewing panel. prominent intercept of electromagnetic wave via gasket beryllium.

Model	PPM-1000	PPM-2000	PPM-3000	PPM-4000	PPM-5000
Size (LxDxH) mm	485 x 25 x 510	859 x 25 x 510	1233 x 25 x 510	1607 x 25 x 510	440 x 25 x 1048
Viewing area	365 x 440	739 x 440	1113 x 440	1487 x 440	335 x 910
Lamp	CCFL (4 Lamps)	CCFL (8 Lamps)	CCFL (12 Lamps)	CCFL (16 Lamps)	CCFL (8 Lamps)
Illuminance	7,000 Lux	7,000 Lux	7,000 Lux	7,000 Lux	7,000 Lux
Weight	4.5 kg	8.5 kg	12.5 kg	16.5 kg	12 kg
Power Consumption	30 W	60 W	90 W	120 W	60 W
Power Supply	DC 12 V / 3A	DC 12 V / 6A	DC 12 V / 6A (2 ea)	DC 12 V / 6A (2 ea)	DC 12 V / 6A
Lamp Life	20,000 hr	20,000 hr	20,000 hr	20,000 hr	20,000 hr
