Products > Nursing Appliances > Stretcher Carts >Sliding Stretcher Cart Crank Type

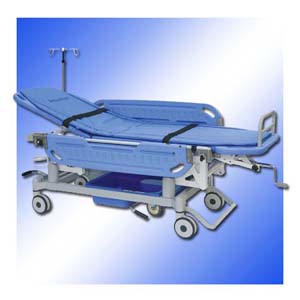

Sliding Stretcher Cart Crank Type

HL-CSSC0704

Patient Transfer Trolley Crank Type

Features :

  • Folded bed side rail.
  • Easy to operate crank handle.
  • Central locking system.
  • Center wheel system.
  • Oxygen cyclinder holder.
  • back raise feature.
  • Tray.
  • I.V Pole.
  • Overview
  • Specification
  • Accessories

Bed side rails are provided and can be folded with a one touch operation. It comes with an easy to operate crank handle that controls the hi low position, enabling the stretcher to be adjusted to match the height of the bed. All four wheels can be locked or unlocked by means of a single pedal operation. A center wheel is equipped under the stretcher.

This wheel enable the bed to moved easily and smoothly. Oxygen cylinder holder are in length ways or cross ways (for foot side only), either one will be choosed.

It also comes with a back raise angle and is controlled by mean of gas cpring lever.

The plastic tray can be used to hold various items. The I.V pole comes with two hooks stainless steel.

Widely used at emergency room & recovery foom of hospital, sliding stretcher cart carrys patients q uickly & comportably with easy operation. An easy-tooperate crank-handle controls hi-low position enabling the stretcher to be adjusted to the height of bed.

Hi-quality caster enable smooth & comfortable movement of patients. And also, oxygen tank is available as option equipment.

Bedside rail

The bed side rails are provided and can be folded with a one-touch operation.

Hi-Lo handle

An easy-to-operate crank-handle controls the hi ~ lo position, enabling the stretcher to be adjusted to match the height of the bed.

Central locking system

All four casters can be locked or unlocked by means of a single pedal operation.

Oxygen cylinder holder

Lengthways or crossways(for foot side only), either will be choosed.

Back raise

Back raise angel is controlled by means of a gas spring lever.

Tray

The plastic tray can be used to hold various items.

I.V Pole

Telescopic I.V pole with two hooks, stainless steel. Sliding Stretcher Cart (Crank)

Other models available :

Model

Size : (L x D x H / mm) Remark

HL-ESSC0704

2080 x 680 x (520 ~ 860) Electric

HL-HSSC0704

2080 x 680 x (520 ~ 860) Hydraulic
Model : PPM-CSSC0704
Size : 2080 x 680 x (520 to 900)
Mattress Length : 2000 mm
Mattress Width : 580 mm
Mattress Height : 20 mm
Siderail Length : 1210 mm
Side Rail Height : 245 mm
Height Range : Min. 520 mm to Max. 900 mm
Backrest : 0 to 70 degree
Weight : 70 Kg
Caster : 150 mm dia Rhombus

Optional items :

  1. O2 tank holder (10 kg)
  2. I.V. Pole
