Products > Nursing Appliances > Stretcher Carts > Premium Stretcher Cart

Premium Stretcher Cart

HL-SK-321
Patient Transfer Trolley Electric Type

Features :

  • Folded bed side rail.
  • Central locking system.
  • Center wheel system.
  • Oxygen cyclinder holder.
  • back raise feature.
  • Tray.
  • I.V Pole.
  • Overview
  • Specification
  • Accessories

Bed side rails are provided and can be folded with a one touch operation. It comes with an easy to electric operate switch that controls the hi low position, enabling the stretcher to be adjusted to match the height of the bed. All four wheels can be locked or unlocked by means of a single pedal operation. A center wheel is equipped under the stretcher.

This wheel enable the bed to moved easily and smoothly.

Auxillary Wheel Centralized Foot Brake Push Handle Mounted Foot Control

Auxiliary Wheel

Centralized Foot Brakes

Ergonomic Push Handles with Intergrated I.V Pole

Mounted Foot Control
By mounting the secondary
wheel In the middle of the bed,
good availability to go straight
on and 360 ° rotation is available.		 Left and right side, Two brake
pedals can be operated to 4
wheels simultaneously.		 Push handle can be folded by
one-touch when it obstruct the
way, I.V pole can be folded

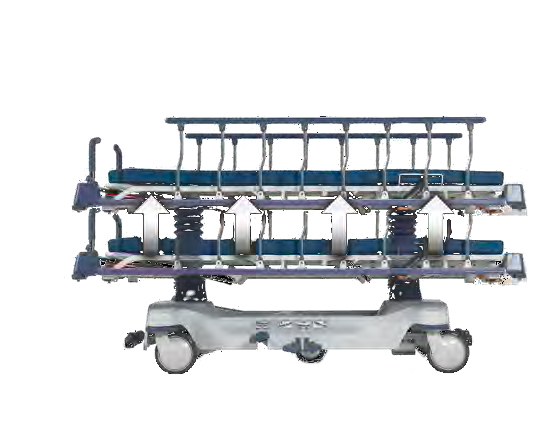

when not in use.		 Up & Down pedals adjust height
of stretcher independent pedals
adjust reverse and Trendelenburg
position.
Trendelenbury

Trendelenbury

0 degree ~ 18 degree Trendelenburg Position

 Premium Stretcher Cart
Reverse Trendelenbury

Reverse Trendelenbury

0 degree ~ 18 degree Trendelenburg Position
Angle Adjustable Foot Rest Food Board

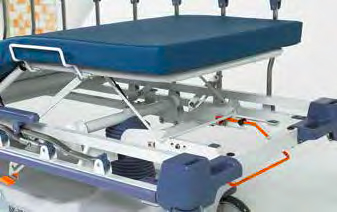

Angle Adjustable Footrest

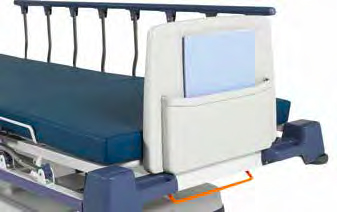

Food Board (Option)
Adjust to 160 mm height position by gas spring Install a foot board which can put a chart
Model :

HL-SK-321
Size : 2125 x 795 x 555 ~905 mm
Frame : Steel pipe
Top : Steel
Base : Steel pipe
Pump :

Oil hygraulic pump (2 Ea)
Finish : Electrostatic powder coating (Use of the epoxy- polyester)
Casters : 8 inch (4EA), 6 inch (1EA)


Standard Acc.


I.V. Pole : 1 Ea


Option


Foot Board

Optional items :

  1. Foot Board
